Rotronic HF3 HVAC TRANSMITTER

R-Type / S-Type

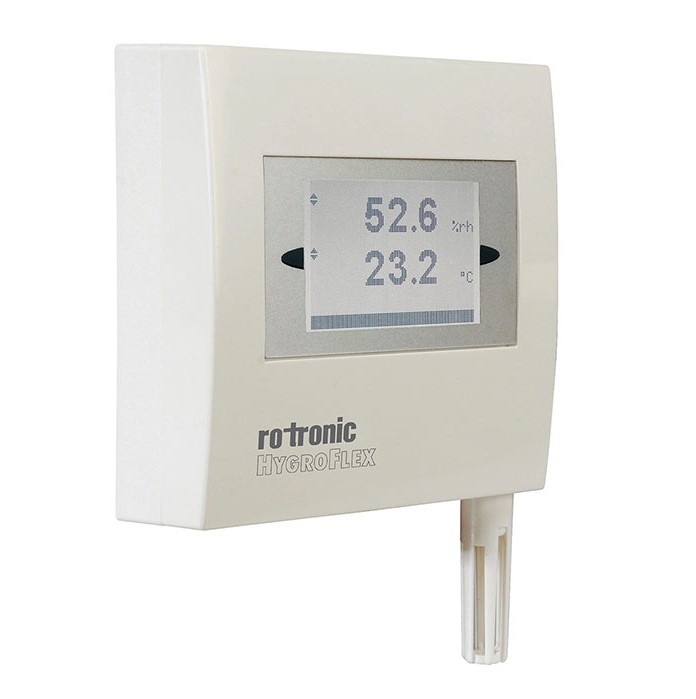

Measures relative humidity and temperature and calculates the dew/frost point in offices and rooms where good looks play a role.

W-Type / D-Type

Measures relative humidity and temperature and calculates the dew/frost point in HVAC applications focused on relability and repeatability.

Features

• Accuracy: ±2 %rh / ±0.3 K at 23°C ±5 K

• Temperature limit at probe: -40…60 °C / 0…100 %rh

• Range of application electronics: -40…60 °C / 0…100 %rh, -10…60 °C with LCD

• Service interface

• Adjusted at 23 °C and 10, 35, 80 %rh

PROBE TYPE: Integrated

OPERATING RANGE: -40…60 °C / -10…60 °C (Models with display) 0…100 %rh, non-condensing

ACCURACY AT 23 ±5 °C: ±2.0 %rh / ±1.0 %rh (Type R), ±0.3 K / ±0.2 K (Type R)

MEASURING RANGE WITH INTEGRATED PROBE: -40…60 °C / 0…100 %rh

POWER CONSUMPTION: 15…40 VDC or 12…28 VAC/ <100 mA

PROBE PROTECTION: Polycarbonate plastic cage, white

FILTER CARTRIDGE: Polyethylene dust filter, gray, 20 um

RESPONSE TIME T 63: <12 s for 63% of a 35> 80% (1 m / sec air flow at the sensor)

ALLOWED WIND SPEED: 20 m/s, with filter

PSYCHROMETRIC CALCULATIONS: Dew or frost point

REPRODUCIBILITY AIRCHIP: <0.02 %rh / 0.01 K

MEASUREMENT INTERVAL: typically 1 second (without calculations)

DISPLAY TYPE: Optional graphics display. Presentation configurable.

BACKLIGHT: with Backlight

ALARM INDICATORS: Yes

EXPLOITATION SOFTWARE; ROTRONIC HW4

TREND INDICATOR: Yes, for models with display

PROBE ADJUSTMENT BY SOFTWARE: Yes, with service cable

REMOTE CONTROL FUNCTIONS: Via HygroPalm and service cable

FIRMWARE UPDATE: With internet and HW4 software

USER INFORMATION: from Software HW4 (devicemanager)

DATA PROCESSING VIA HW4: with interface cables

DEVICE PROTECTION BY PASSWORD: Yes

TYPE OF OUTPUT SIGNALS: 2

ANALOGUE OUTPUTS SCALEABLE BY THE USER: Yes

CHANGE OF OUTPUT SIGNAL W/O ADJUSTMENT: Yes

ANALOG OUTPUT SIGNAL (STANDARD): 0…20 mA, 4… 20 mA; 0… 1 V, 0… 5 V, 0… 10 V

DIGITAL OUTPUT SIGNAL (STANDARD): UART

MIN. / MAX. LOAD VOLTAGE / CURRENT SIGNAL:V min = 10 V + (0.02 x Load*) * = Resistance in ohms

SERVICE INTERFACE: Mini USB (UART)

SERVICE INFORMATION: Calibration interval

MAX. CABLE LENGTH: Up to 5 m with passive cable. Up to 100 m with active cable.

PROBE MATERIAL: Polycarbonate

ENCLOSURE MATERIAL: ABS

IP PROTECTION RATING:

HF3x-S/ HF3x-R: IP20

HF3x-W/ HF3x-D: IP65

FIRE PROTECTION CLASS: Complies UL94-HB

FDA/GAMP COMPATIBILITY: FDA 21 CFR Part 11 and GAMP compatible

DIMENSIONS:

Wall: ø 82 x 43, probe length 100 mm

Duct: ø 82 x 43, probe length 207 mm

Room: 82 x 82 x 26 mm
