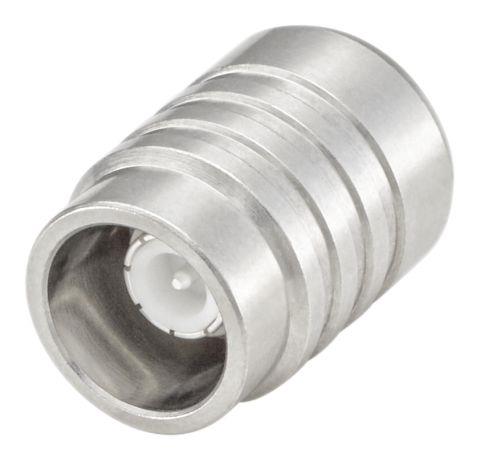

Rosenberger 89S161-272N1 Cable Connectors Straight Plug
ManufacturerRosenberger(View more products from this manufacturer)
Model89S161-272N1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Frequency: 20 GHz
IP Rating: IP68
Impedance: 50 Ohms
RF Series: NEX10
Cable Type: RG-402, RTK-FS 141, UT 141
Body Finish: Bronze
Orientation: Straight
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 100 Cycle
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 500 V
Contact Plating: Silver
Contact Material: Brass
Maximum Frequency: 20 GHz
Termination Style: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
