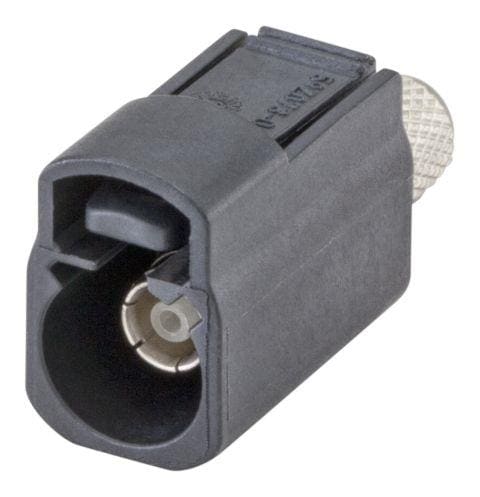

Rosenberger 59K17H-109A4-A Cable Connectors Jack RG 59Vid0.6/3.7 Cable Full CrimpABlk
ManufacturerRosenberger(View more products from this manufacturer)
Model59K17H-109A4-A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Frequency: 1 GHz
Impedance: 50 Ohms
RF Series: FAKRA
Body Style: Straight
Cable Type: RG-59, 62
Orientation: Straight
Contact Type: Socket (Female)
Mating Cycles: 25 Cycle
Mounting Style: Cable Mount / Free Hanging
Voltage Rating: 335 V
Contact Plating: Gold
Contact Material: Bronze
Maximum Frequency: 1 GHz
Termination Style: Crimp
Contact Termination: Crimp
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
