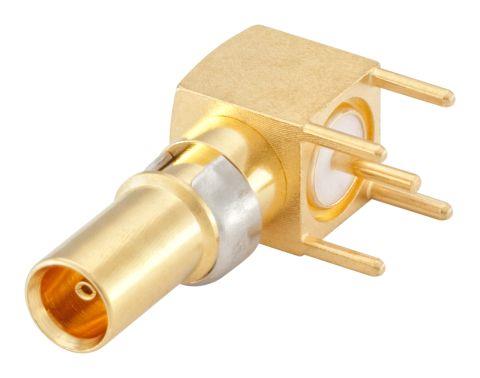

Rosenberger 45K201-400L5 PCB Connectors Coax 1.0/2.3 DIN R/A Jack PCB
ManufacturerRosenberger(View more products from this manufacturer)
Model45K201-400L5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Frequency: 6 GHz
Impedance: 50 Ohms
RF Series: 1.0/2.3
Body Finish: Gold
Orientation: Right Angle
Unit Weight: 2.300 g
REACH - SVHC: Details
Body Material: Brass
Mating Cycles: 500 Cycle
Mounting Style: PCB Mount
Voltage Rating: 250 V
Contact Plating: Gold
Contact Material: Copper Alloy
Maximum Frequency: 6 GHz
Termination Style: Solder
Insulation Resistance: 200 MOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
