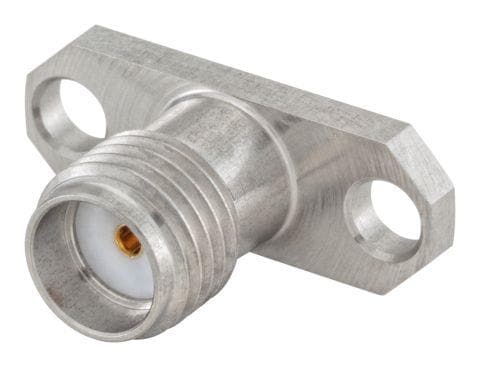

Rosenberger 32K724-600S5 Panel Receptacles SMA Panel Jack 2 Hole Flange
ManufacturerRosenberger(View more products from this manufacturer)
Model32K724-600S5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Frequency: 18 GHz
Impedance: 50 Ohms
RF Series: SMA
Orientation: Straight
Unit Weight: 1.600 g
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycle
Mounting Style: Flange Mount
Voltage Rating: 480 V
Contact Plating: Gold
Contact Material: Copper Alloy
Maximum Frequency: 18 GHz
Termination Style: Solder
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
