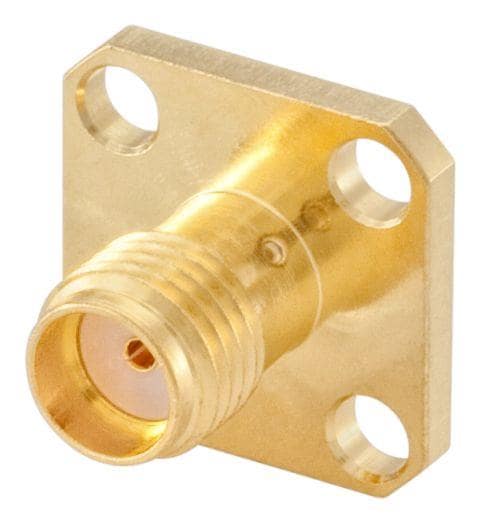

Rosenberger 32K441-600L5 Panel Receptacles SMA Straight Panel Jack
ManufacturerRosenberger(View more products from this manufacturer)
Model32K441-600L5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Frequency: 12 GHz
Impedance: 50 Ohms
RF Series: SMA
Body Style: Straight
Body Finish: Gold
Orientation: Straight
Unit Weight: 2.600 g
Body Material: Brass
Mating Cycles: 100 Cycle
Mounting Style: Flange Mount
Voltage Rating: 480 V
Contact Plating: Gold
Contact Material: Copper Alloy
Maximum Frequency: 12 GHz
Termination Style: Solder Pin
Coupling Mechanism: Threaded
Insulation Resistance: 5 GOhms
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
