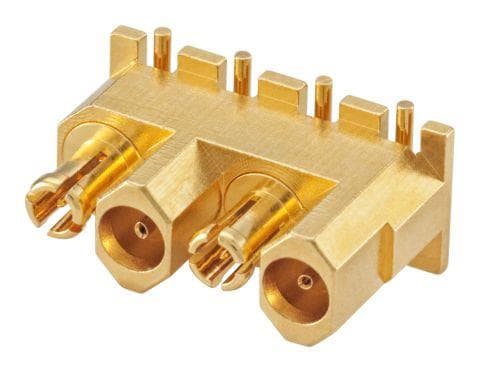

Rosenberger 23C11E-40ML5 Connectors Insert Mini-Coax 4 Channel Multi-Port
ManufacturerRosenberger(View more products from this manufacturer)
Model23C11E-40ML5
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Frequency: 20 GHz
Impedance: 50 Ohms
RF Series: Mini-Coax
Body Style: Straight
Body Finish: Gold
Orientation: Straight
Unit Weight: 2.100 g
Body Material: Brass
Mating Cycles: 500 Cycle
Mounting Style: SMD/SMT
Voltage Rating: 500 V
Contact Plating: Gold
Contact Material: Copper Alloy
Maximum Frequency: 20 GHz
Termination Style: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
