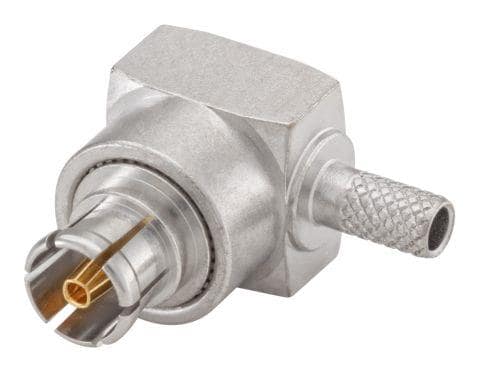

Rosenberger 119K207-303N5 Cable Connectors RIGHT ANGLE JACK

Gender: Jack (Socket)

Polarity: Standard

Frequency: 10 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: PSMP

Body Style: Right Angle

Cable Type: RG-179B/U-d, 316-d

Body Finish: Bronze

Orientation: Right Angle

Unit Weight: 3.050 g

Contact Type: Socket (Female)

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 1000 Cycle

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 480 V

Contact Plating: Gold

Contact Material: Copper Alloy

Maximum Frequency: 10 GHz

Termination Style: Solder

Contact Termination: Crimp

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
