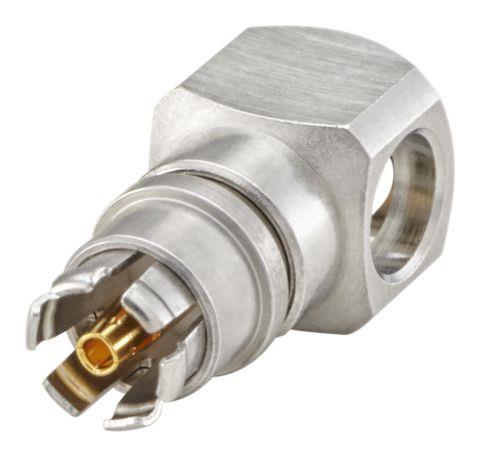

Rosenberger 119K201-272N5 Cable Connectors right angle jack

Gender: Jack (Socket)

Polarity: Standard

Frequency: 10 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: PSMP

Body Style: Right Angle

Cable Type: RTK-FS 141, UT 141

Body Finish: Bronze

Orientation: Right Angle

Body Material: Brass

Mating Cycles: 100 Cycle

Insertion Loss: 0.03 dB

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 480 VAC

Contact Plating: Gold

Contact Material: Copper Alloy

Maximum Frequency: 10 GHz

Termination Style: Crimp

Coupling Mechanism: Quick Connect/Disconnect

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
