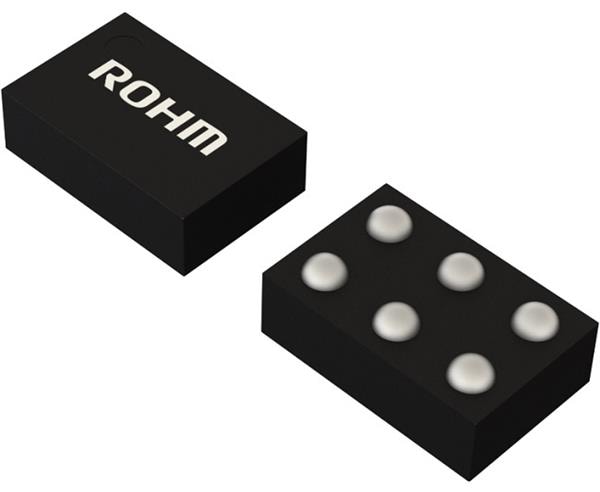

ROHM Semiconductor TLR377GYZ-E2 Operational Amplifiers Ultra Small Package & High Precision Rail-to-Rail Input/Output CMOS Operational Amplifier

Shutdown: Shutdown

Input Type: Rail-to-Rail

Technology: CMOS

Output Type: Rail-to-Rail

Amplifier Type: Ultra Small Package & High Precision Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 2 V/us

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Ib - Input Bias Current: 500 fA

Operating Supply Current: 585 uA

Vcm - Common Mode Voltage: 5 V

Output Current per Channel: 12 mA

Vos - Input Offset Voltage: 100 uV

Maximum Dual Supply Voltage: 2.75 V

Minimum Dual Supply Voltage: 900 mV

GBP - Gain Bandwidth Product: 4 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 20 C

en - Input Voltage Noise Density: 50 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 70 dB

PSRR - Power Supply Rejection Ratio: 75 dB
