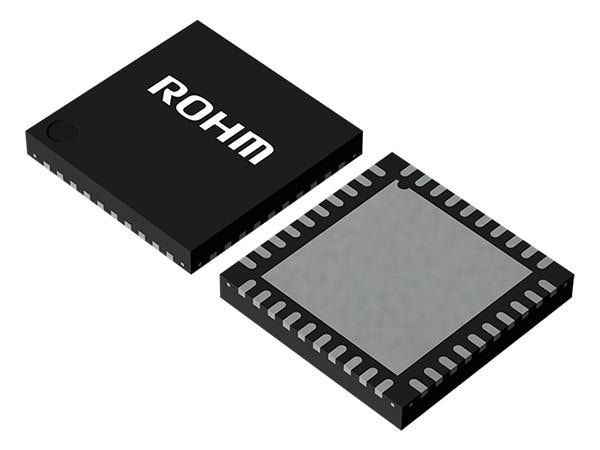

ROHM Semiconductor ML62Q2524-NNNGDZW5BX Microcontrollers General-Purpose MCUs(16bit)ML62Q2500 group is a high performance CMOS 16-bit MCU equipped with an 16-bit CPU nX-U16/100 and integrated with program memory(Flash memory), data memory(RAM), data Flash (Erase unit:128byte, Write unit:1byte) and rich per

Core: RISC

Data RAM Size: 8 kB

Data RAM Type: RAM

Data ROM Size: 4 kB

Data ROM Type: ROM

ADC Resolution: 12 bit

Data Bus Width: 16 bit

Interface Type: I2C, UART

Mounting Style: SMD/SMT

Number of I/Os: 32 I/O

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 128 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Number of ADC Channels: 14 Channel

Maximum Clock Frequency: 1 MHz

Operating Supply Voltage: 1.8 V to 5.5 V

Number of Timers/Counters: 1 x 16 bit

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
