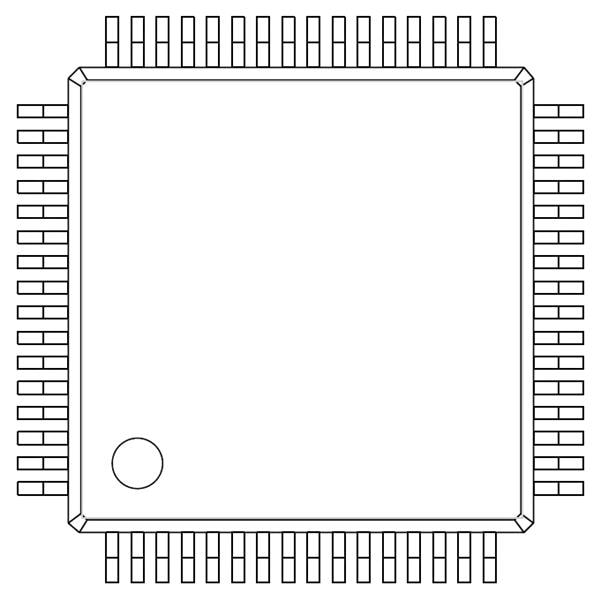

ROHM Semiconductor ML62Q1722-NNNTBZ0BX MCUs 16bit LP-MCU 64KB Flash 8KB RAM 32kHz & 24MHz. ML62Q1700 Group is a high performance CMOS 16-bit microcontroller equipped with an 16-bit CPU nX-U16-100 and integrated with program memory(Flash memory), data memory(RAM), data Flash and rich periphera

Core: nX-U16/100

Data RAM Size: 8 kB

Data RAM Type: RAM

ADC Resolution: 10 bit

Data Bus Width: 16 bit

Interface Type: Serial

Mounting Style: SMD/SMT

Number of I/Os: 53 I/O

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 64 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.6 V

Maximum Clock Frequency: 24 MHz

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
