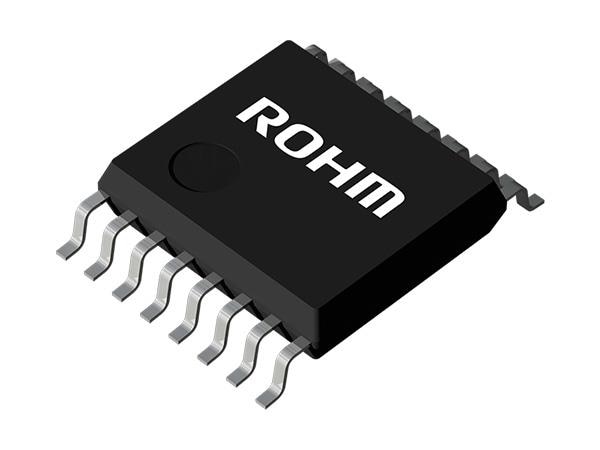

ROHM Semiconductor ML62Q1323-NNNMBZ0ATL Microcontrollers 16bit MCU 16KB Flash SSOP16 32kHz & 24MH

Core: RISC

Data RAM Size: 2 kB

Data RAM Type: RAM

Data ROM Size: 2 kB

Data ROM Type: ROM

ADC Resolution: 10 bit

DAC Resolution: 8 bit

Data Bus Width: 16 bit

Interface Type: GPIO, I2C, SPI, UART

Mounting Style: SMD/SMT

Number of I/Os: 12 I/O

Development Kit: RB-D62Q1325MB16

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 16 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.6 V

Number of ADC Channels: 8 Channel

Maximum Clock Frequency: 24 MHz

Operating Supply Voltage: 1.6 V to 5.5 V

Number of Timers/Counters: 4 x 16 bit

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
