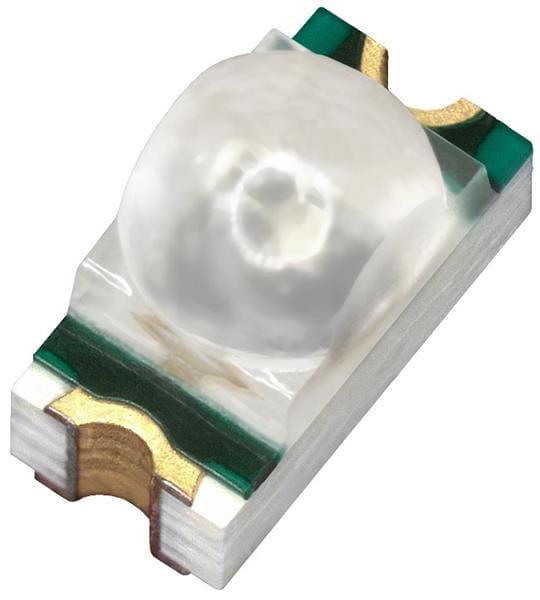

ROHM Semiconductor CSL0902R3T1 Mid-Power LEDs Small 1608 size lensed surface-mount type, 940nm NIR (Near Infrared) LED
ModelCSL0902R3T1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Width: 0.8 m
Height: 1.24 mm
Length: 1.6 mm
Lens Shape: Dome
Wavelength: 940 nm
Power Rating: 60 mW
Mounting Style: SMD/SMT
Radiant Intensity: 5 mW/sr
Illumination Color: Infrared
Moisture Sensitive: Yes
If - Forward Current: 20 mA
Vf - Forward Voltage: 1.4 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
