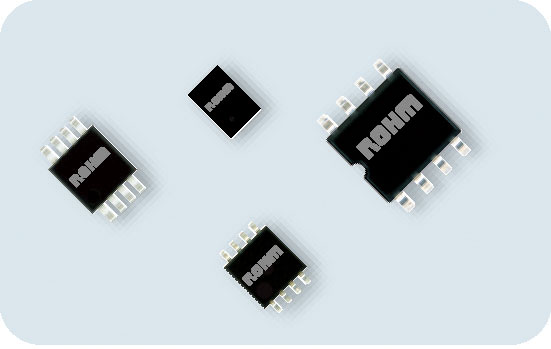

ROHM Semiconductor BR25L080F-WE2 EEPROM SPI 8K BIT

Width: 4.4 mm

Height: 1.5 mm

Length: 5 mm

Memory Size: 8 kbit

Unit Weight: 851 mg

Organization: 1 k x 8

Data Retention: 40 Year

Interface Type: SPI

Mounting Style: SMD/SMT

Programming Voltage: 1.8 V to 5.5 V

Supply Current - Max: 3 mA

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.8 V

Maximum Clock Frequency: 2 MHz

Operating Supply Current: 3 mA

Operating Supply Voltage: 2.5 V, 3.3 V, 5 V

Active Read Current - Max: 3 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
