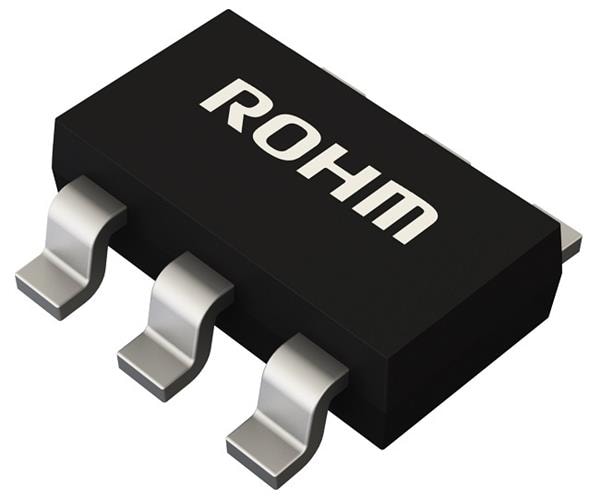

ROHM Semiconductor BD9E203FP4-ZTL Single Synchronous Buck DC to DC Converter 4.5V to 28V Input, 2.0A Integrated MOSFET Single Synchronous Buck DC/DC Converter

Shutdown: Shutdown

Topology: Buck

Input Voltage: 4.5 V to 28 V

Mounting Style: SMD/SMT

Output Current: 2 A

Output Voltage: 700 mV to 22.4 V

Development Kit: BD9E203FP4-EVK-001

Number of Outputs: 1 Output

Quiescent Current: 510 uA

Input Voltage - Max: 28 V

Input Voltage - Min: 4.5 V

Switching Frequency: 350 kHz

Supply Voltage - Min: 4.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
