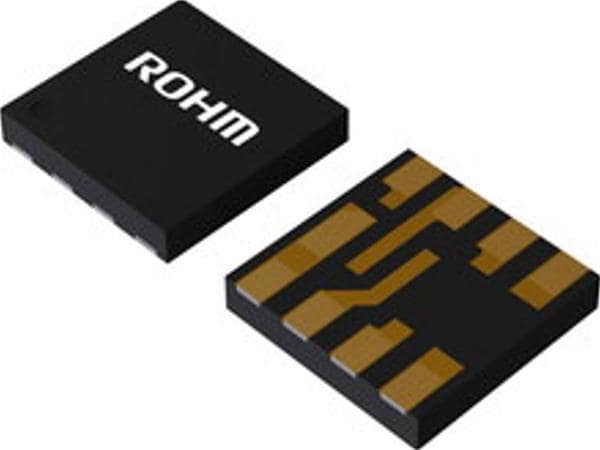

ROHM Semiconductor BD9B305QUZ-E2 Switching Controllers BD9B305QUZ is a synchronous buck DC-DC converter with built-in low on-resistance power MOSFETs. It is capable of providing current up to 3A. It features fast transient response due to constant on-time control system. The Light Load Mode control impro

Shutdown: Shutdown

Topology: Buck

Isolation: Isolated

Input Voltage: 2.7 V to 5.5 V

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: 600 mV to 4.4 V

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.7 V

Switching Frequency: 1 MHz

Operating Supply Voltage: 2.7 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
