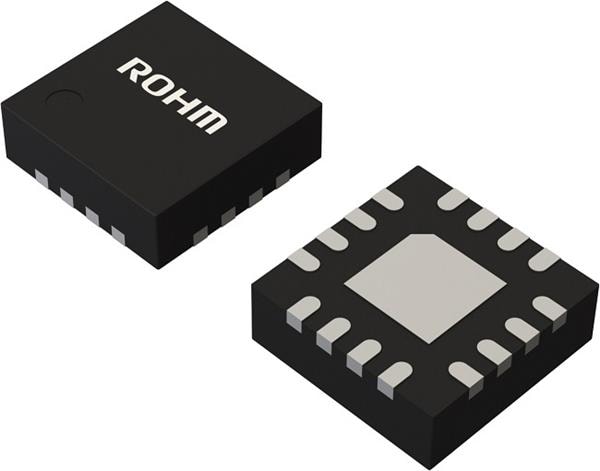

ROHM Semiconductor BD9615MUV-LBE2 DC/DC Controllers 1ch Bst DC/DC Cntlr 3.5-60V; 100-2500kHz

Shutdown: Shutdown

Topology: Boost

Isolation: Isolated

Input Voltage: 3.5 V to 60 V

Mounting Style: SMD/SMT

Output Current: 180 uA

Output Voltage: 3 V, 5 V

Duty Cycle - Max: 98 %

Number of Outputs: 1 Output

Input Voltage - Max: 60 V

Input Voltage - Min: 3.5 V

Switching Frequency: 2.5 MHz

Description/Function: Low-side MOSFET controller

Operating Supply Current: 2 mA

Operating Supply Voltage: 3.5 V to 60 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
