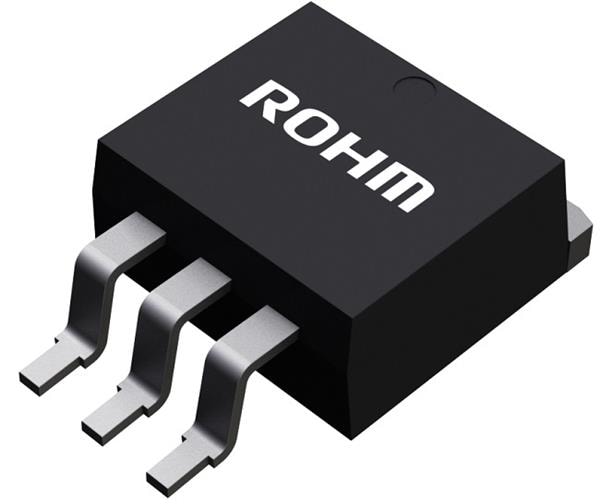

ROHM Semiconductor BD80C0AFP2-CE2 LDO Regulator 35V Voltage 1A LDO Reg

Polarity: Positive

Output Type: Fixed

Unit Weight: 2.200 g

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 8 V

Dropout Voltage: 300 mV

Line Regulation: 20 mV

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Input Voltage - Max: 26.5 V

Dropout Voltage - Max: 500 mV

Ib - Input Bias Current: 2.5 mA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 50 dB
