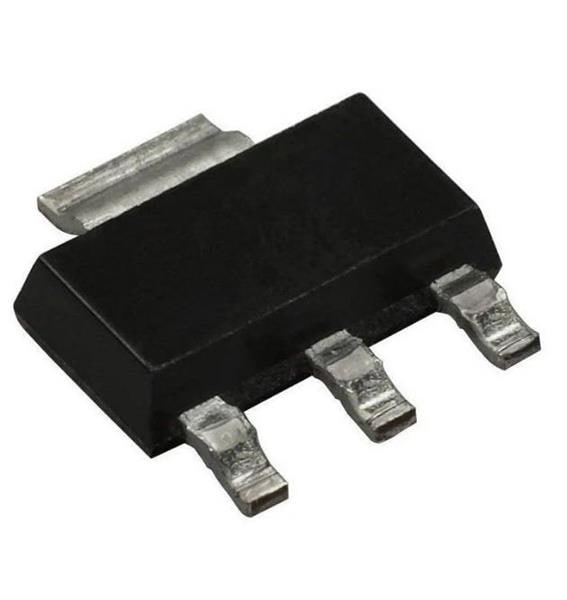

ROHM Semiconductor BD750L2FP3-CE2 Low Quiescent Current LDO IC Pwr Linear Reg Single Output LDO

Polarity: Positive

Output Type: Fixed

Unit Weight: 112 mg

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 5 V

Dropout Voltage: 400 mV

Line Regulation: 5 mV

Load Regulation: 5 mV

Number of Outputs: 1 Output

Quiescent Current: 6 uA

Moisture Sensitive: Yes

Input Voltage - Max: 45 V

Input Voltage - Min: 5.8 V

Dropout Voltage - Max: 700 mV

Ib - Input Bias Current: 15 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
