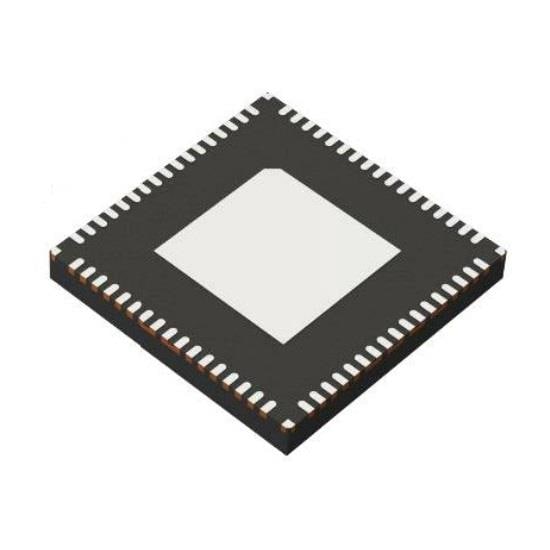

ROHM Semiconductor BD71837AMWV-E2 Programmable System PMIC for i.MX 8M Family. BD71837AMWV integrates all power rails required by i.MX 8M processors and system peripherals. In addition to integrate a sequencer compatible with power modes supported by i.MX 8M processors, making it possible to sig

Application: Streaming Media Boxes and Dongles

Unit Weight: 2.338 g

Mounting Style: SMD/SMT

Output Current: 4 A

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 2.7 V

Input Voltage Range: 2.7 V to 5.5 V

Output Voltage Range: 700 mV to 3.3 V

Maximum Output Voltage: 3.3 V

Operating Supply Current: 4 uA

Operating Supply Voltage: 2.7 V to 5.5 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
