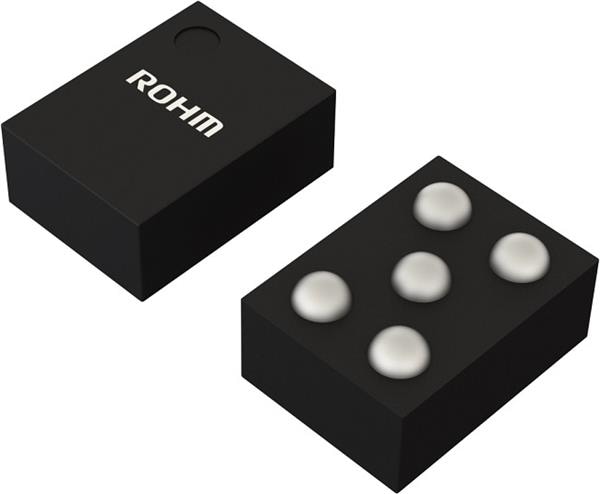

ROHM Semiconductor BD5291GWL-E2 Operational Amplifiers Input/Output Rail to Rail Low Input Offset Voltage Operational Amplifier: The BD5291GWL is a single operational amplifier with Input/Output Rail-to-Rail. This features Input/Output Rail-to-Rail operation with a supply voltage as low as 1.7V, wide In

Shutdown: No Shutdown

Input Type: Rail-to-Rail

Technology: Si

Output Type: Rail-to-Rail

Amplifier Type: Low Input Offset Voltage Amplifier

Mounting Style: SMD/SMT

SR - Slew Rate: 2.5 V/us

THD plus Noise: 0.005 %

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.7 V

Ib - Input Bias Current: 1 pA

Operating Supply Current: 650 uA

Vcm - Common Mode Voltage: 3.3 V

Ios - Input Offset Current: 1 pA

Output Current per Channel: 17 mA

Vos - Input Offset Voltage: 100 uV

Maximum Dual Supply Voltage: 2.75 V

Minimum Dual Supply Voltage: 850 mV

GBP - Gain Bandwidth Product: 3.2 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

en - Input Voltage Noise Density: 18 nV/sqrt Hz

CMRR - Common Mode Rejection Ratio: 70 dB

PSRR - Power Supply Rejection Ratio: 70 dB
