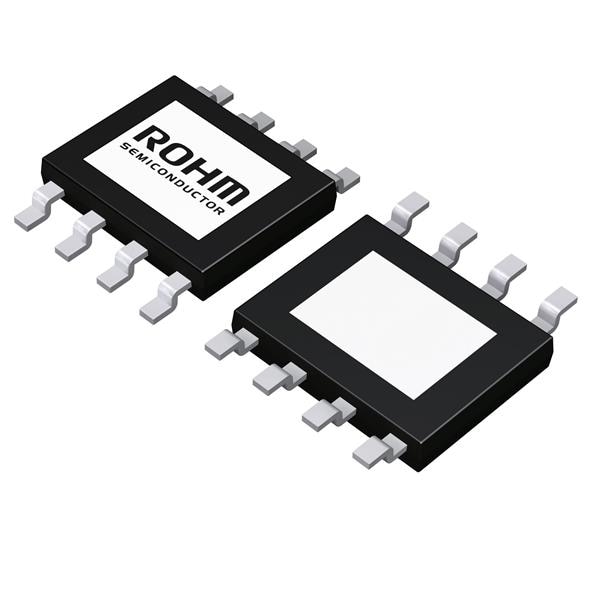

ROHM Semiconductor BD50GC0MEFJ-LBH2 LDO Regulators 1.0A Variable Output Industrial LDO Regulator

Polarity: Negative

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 1 A

Output Voltage: 5 V

Dropout Voltage: 600 mV

Line Regulation: 1 %

Load Regulation: 1.5 %

Number of Outputs: 1 Output

Reference Voltage: 800 mV

Input Voltage - Max: 14 V

Input Voltage - Min: 4.5 V

Dropout Voltage - Max: 900 mV

Pd - Power Dissipation: 2.11 W

Ib - Input Bias Current: 900 uA

Voltage Regulation Accuracy: 1 %

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
