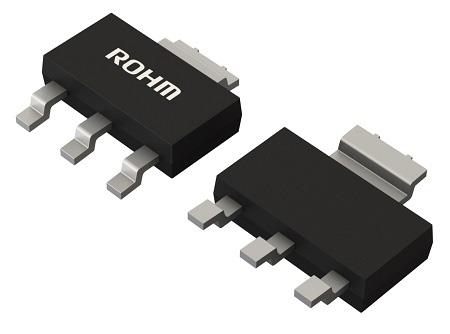

ROHM Semiconductor BD450S2WFP3-CE2 Automotive LDO Regulator Automotive 200mA 5.0V, Fixed Output LDO Regulators with Enable Input

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 200 mA

Output Voltage: 5 V

Dropout Voltage: 160 mV

Line Regulation: 10 mV

Load Regulation: 10 mV

Number of Outputs: 1 Output

Quiescent Current: 40 uA

Input Voltage - Max: 42 V

Input Voltage - Min: 5.8 V

Dropout Voltage - Max: 350 mV

Operating Supply Current: 40 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 65 dB
