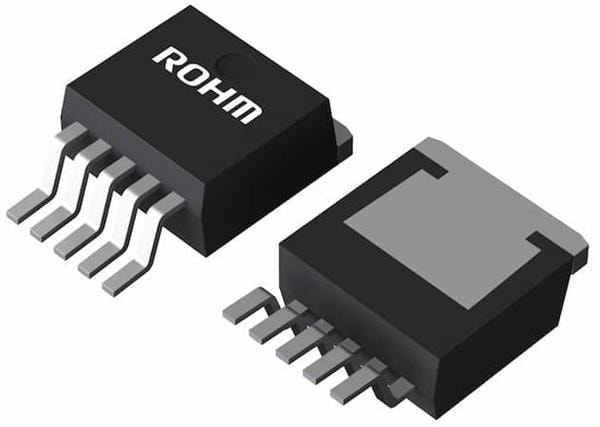

ROHM Semiconductor BD42754FP2-CE2 LDO Regulator 500mA LDO Regulator w/volt det 75uA 5V

Polarity: Positive

Output Type: Fixed

Unit Weight: 2.200 g

REACH - SVHC: Details

Qualification: AEC-Q100

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 5 V

Dropout Voltage: 250 mV

Line Regulation: 15 mV

Load Regulation: 10 mV

Number of Outputs: 1 Output

Quiescent Current: 75 uA

Moisture Sensitive: Yes

Input Voltage - Max: 45 V

Input Voltage - Min: 3 V

Dropout Voltage - Max: 500 mV

Operating Supply Current: 75 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
