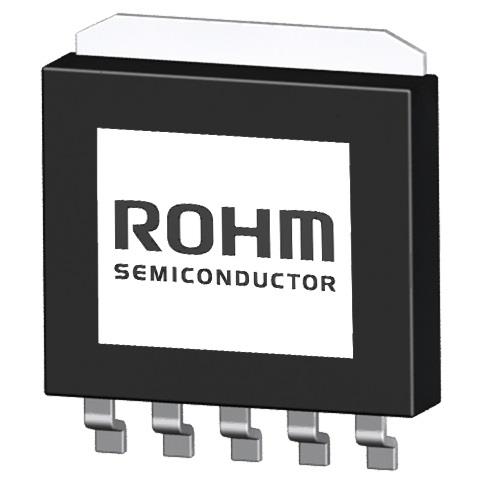

ROHM Semiconductor BD3570HFP-TR High Voltage LDO REGULATOR POS 3.3V 0.5A 6PIN

Output Type: Fixed

Unit Weight: 100 mg

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 3.3 V

Dropout Voltage: 250 mV

Line Regulation: 10 mV

Load Regulation: 20 mV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 4.5 V

Dropout Voltage - Max: 480 mV

Pd - Power Dissipation: 1.6 W

Ib - Input Bias Current: 30 uA

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 55 dB
