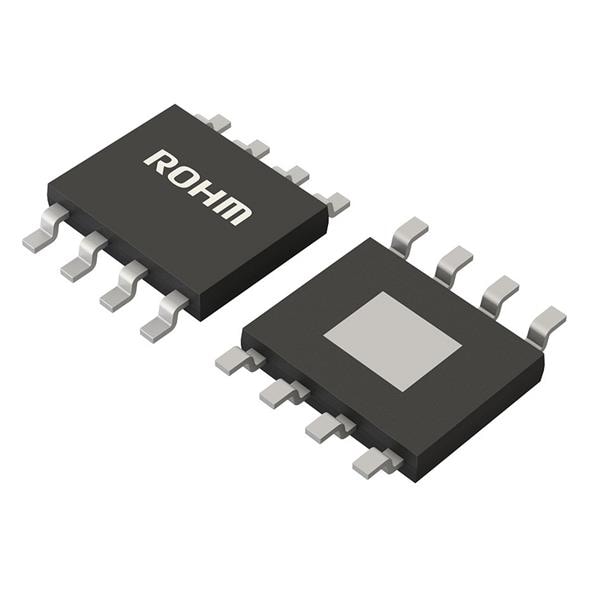

ROHM Semiconductor BD33GA5MEFJ-LBH2 Industrial 0.5A Variable Output Industrial LDO Regulator

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 3.3 V

Dropout Voltage: 600 mV

Line Regulation: 1 %

Load Regulation: 1.5 %

Number of Outputs: 1 Output

Input Voltage - Max: 14 V

Input Voltage - Min: 4.5 V

Output Voltage Range: 1.5 V to 13 V

Dropout Voltage - Max: 900 mV

Pd - Power Dissipation: 2.11 W

Ib - Input Bias Current: 900 uA

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
