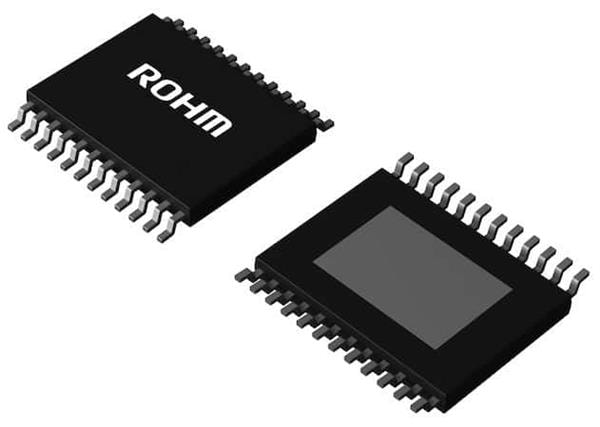

ROHM Semiconductor BD16950AEFV-CE2 Half-Bridge 2ch Half-Bridge Gate Driver: The BD16950AEFV is an AEC-Q100 automotive qualified 2-channel Half-Bridge Gate Driver, controlled by an external MCU through a 16-bit Serial Peripheral Interface(SPI). Independent control of low-side and high-side N-MOSFE

Technology: Si

Mounting Style: SMD/SMT

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Moisture Sensitive: Yes

Input Voltage - Max: 5.5 V

Input Voltage - Min: 3 V

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 3 V

Propagation Delay - Max: 400 ns

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
