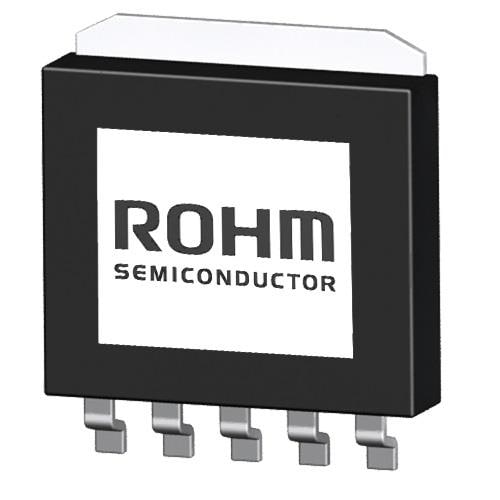

ROHM Semiconductor BA33D18HFP-TR LDO Voltage Regulators DUAL OUTPUT LDO REG FIXEDFIXED

Polarity: Positive

Output Type: Fixed

Unit Weight: 1 g

REACH - SVHC: Details

Mounting Style: SMD/SMT

Output Current: 500 mA

Output Voltage: 1.8 V, 3.3 V

Load Regulation: 75 mV

Number of Outputs: 2 Output

Input Voltage - Max: 16 V

Input Voltage - Min: 4.1 V

Dropout Voltage - Max: 250 mV

Ib - Input Bias Current: 700 uA

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 25 C

PSRR / Ripple Rejection - Typ: 58 dB
