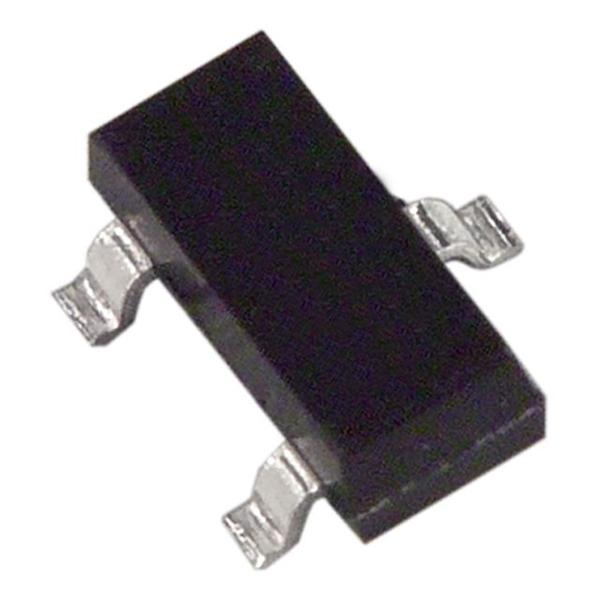

ROHM Semiconductor 2SCRC41CHZGT116R BJTs - Bipolar Transistors High-voltage Amplifier Transistor (120V, 50mA). 2SCRC41CHZG is a transistor for high-voltage amplifier. Complementary is the 2SARA41C HZG

Technology: Si

Configuration: Single

Mounting Style: SMD/SMT

Transistor Polarity: NPN

Pd - Power Dissipation: 200 mW

DC Current Gain hFE Max: 390

Gain Bandwidth Product fT: 140 MHz

Emitter- Base Voltage VEBO: 5 V

Collector- Base Voltage VCBO: 120 V

Continuous Collector Current: 50 mA

Maximum DC Collector Current: 50 mA

Maximum Operating Temperature: + 150 C

DC Collector/Base Gain hfe Min: 180

Collector- Emitter Voltage VCEO Max: 120 V

Collector-Emitter Saturation Voltage: 500 mV
