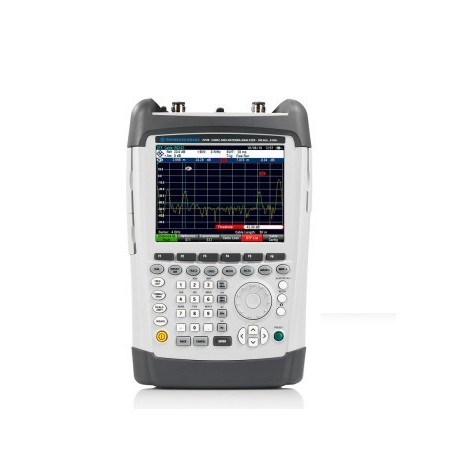

Rohde & Schwarz ZVH8 Cable And Antenna Analyzer (100Khz~8Ghz)

Frequency range: 100 kHz to 8 GHz

Number of Ports: 2

Dynamic range: 100dB

Port output power: 0 dBm to -40 dBm

Data points: 101, 201, 401, 601, 631, 801, 1001, 1201

Cable error measurement mode (DTF): return loss (dB), VSWR

Measurement meter: S11, return loss (dB), VSWR, one-port cable loss

Measurement mode (optional): transmission measurement, vector network analysis, vector voltmeter, spectrum analysis, power meter, power measurement with power sensor, pulse measurement

DC bias: yes

Display:6.5" color LCD with VGAresolution

Battery operation (fully charged): 3 hours (with HA-Z204)/ 4.5 hours (with HA-Z206)

Weight: 3 Kg

Included: lithium-ion battery pack, LAN and USB cables, AC power supply, CD-ROM with software and documentation, quick start guide
