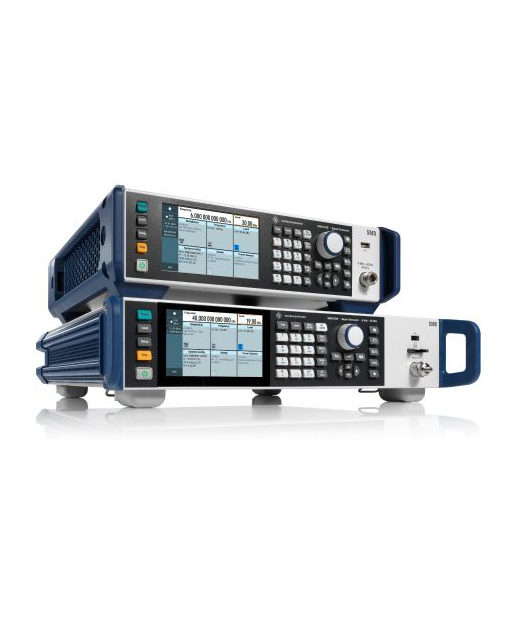

Rohde & Schwarz SMB100B RF And Microwave Signal Generator

Frequency range from 8 kHz to 1, 3, 6, 12.75, 20, 31.8 and 40 GHz

Outstanding single sideband (SSB) phase noise of < –112 dBc (meas.) at 10 GHz and an offset of 20 kHz

Very low wideband noise depending on the frequency range, sometimes well below < –145 dBc (meas.)

Highest output power of 34 dBm at 1 GHz, 25 dBm at 20 GHz and 19 dBm at 40 GHz (all is measured)

Compact form factor of 2 HU and 3/4 19" width for the R&S®SMB100B RF signal generator (1/3/6 GHz) and 19" width for the R&S®SMB100B microwave signal generator (12.75/20/31.8/40 GHz)

Datasheet
