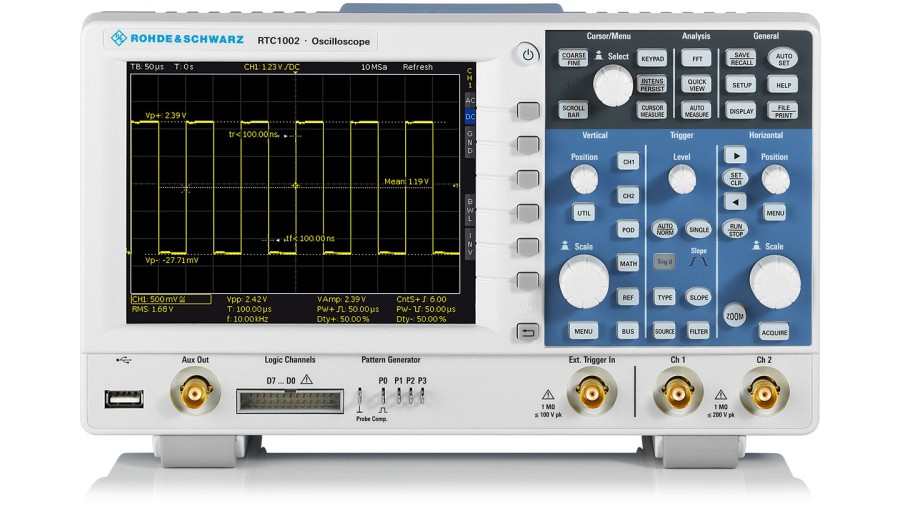

Rohde & Schwarz RTC1002 Rohde&Schwarz RTC1002 Oscillosope (50MHz, 2channels, 2 Gsa/s)

Manufacturer: Rohde&Schwarz

Model: RTC1002

Warranty: 12 months

Bandwidth: 50 MHz

Channels: 2

Max. Sample Rate: 2 Gsample/s

Max.Memory Depth: 2 Msample

Rise time : 7ns

Input Impedance : 1 MΩ ± 2% || 14 pF ± 2 pF

Voltage Sensitivity : 1 mV/div ~ 10 V/div

Timebase range: 1 ns/div to 100 s/div

DC Accuracy : 3%

ADC Resolution : 8 bit

MSO (Optional): 8 digital channels, upgradeable, 0.5 Gsamples, 0.5Msample

Signal Generator (Optional) : 100mHz ~ 50Mhz

Multifunctional: DVM, Counter, waveform generator, pattern generator, component tester

Screen:6.5" VGA color display (640 × 480 pixel)

Interfaces:1 x USB host, USB device, LAN

Dimensions(W × H × D):285 mm × 175 mm × 140 mm

Weight:1.7 kg (3.75 lb)

Scope of delivery: User manual; Power Cord; R&S RT-ZP03 single-ended pasive probes for each channel
