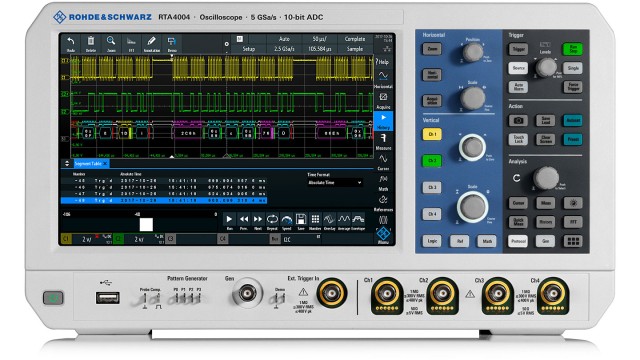

Rohde & Schwarz RTA4004 Oscillosope (200MHz,4CH,5Gsa/s)

Manufacturer: Rohde&Schwarz

Model: RTA4004

Warranty: 12 months

Bandwidth: 200 MHz

Channels: 4

Max. Sample Rate: 5Gsa/s

Max.Memory Depth: 200 Msample

Rise time : 5 ns

Optional MSO: 16 digital channels,2.5 Gsa/s, 10 Msample

Signal Generator (Optional) : 14 bit, 250Msa/s

ADC resolution: 10 bit, up to 16 bits

Input impedance: 50 MΩ, 1 MΩ

Input sensitivity:

- at 1 MΩ:500 μV/div to 10 V/div

- at 50 MΩ:500 μV/div to 1 V/div

DC gain accuracy

input sensitivity > 5 mV/div:±1 % of full scale

input sensitivity ≤ 5 mV/div to ≥ 1 mV/div:±1.5 % of full scale

input sensitivity < 1 mV/div:±2.5 % of full scale

Timebase range: selectable between 0.5 ns/div and 500 s/div

Screen :10.1" WXGA TFT color display (1280 × 800 pixel)

Interfaces:USB host with MTP, USB device, LAN, powerful web server for remote display and operation

Dimensions:(W × H × D)390 mm × 220 mm × 152 mm

Weight :3.3 kg

Scope of delivery: Power Cord; R&S RT-ZP10 single-ended pasive probes for each channel
