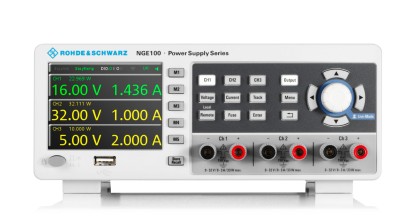

Rohde & Schwarz NGE102 Power Supply (32V/3A, 2 CH)

Number of output channels: 2

Total output power: 66 W

Maximum output power/CH: 33.6 W

Output voltage/CH: 0 V to 32 V

Output current/CH: 0 A to 3 A

Resolution: 10 mV/ 1 mA

Line and load regulation : < 0.1% + 20 mV, < 0.1% + 5 mA

Voltage Ripple: (20Hz ~ 20Mhz) : < 1.5 mV (RMS), < 2 mA (RMS)

Setting accuracy: : < 0.1% + 30 mV, < 0.1% + 5 mA

Communication: USB-TMC, USB-CDC

General data

Mains nominal voltage: AC 115/230 V (±10%) 50/60 Hz

Display: 3.5", QVGA

Dimensions(W × H × D):222 mm × 88 mm × 280 mm

Weight: 4.4 kg

Scope of Delivery: Power Cable, Manual
