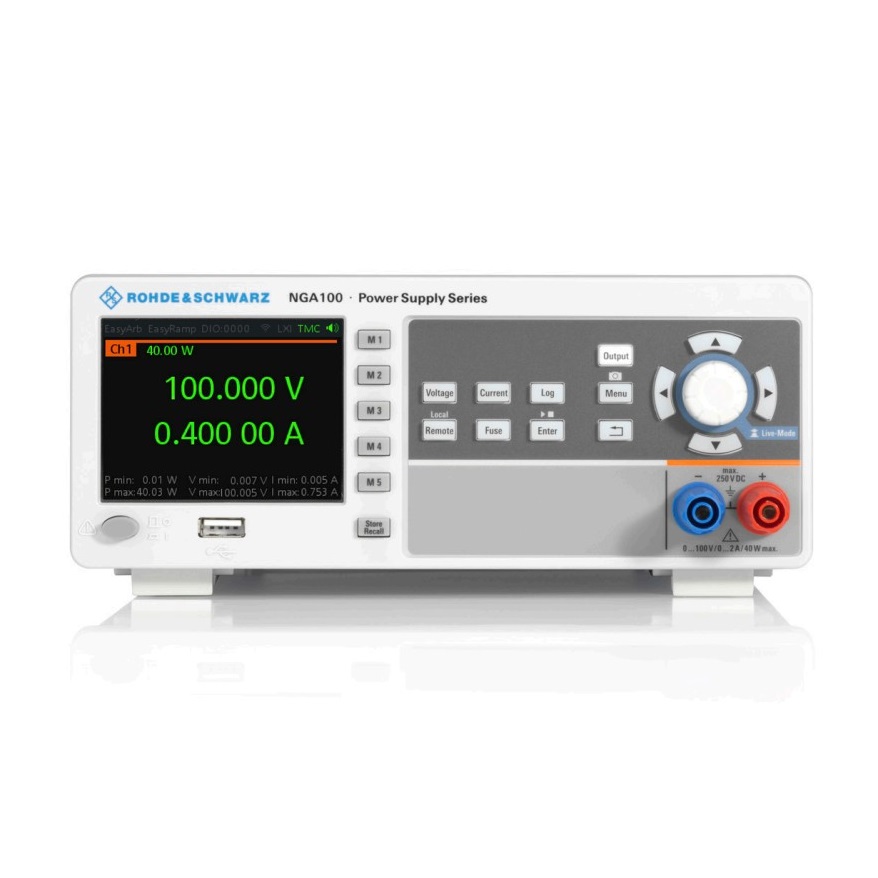

Rohde & Schwarz NGA141 DC Power Supply (0~100V, 2A)

Number of output channels: 1

Total output power: 40W

Maximum output power/CH: 40W

Output voltage/CH: 0V ~ 100V

Output current/CH: 2A

Resolution: 1 mV/ 1 mA

Feedback accuracy: < 0.02% + 10 mV, < 0.03% + 500 µA

Programming accuracy: < 0.05% + 20 mV, < 0.05% + 500 µA

Voltage Ripple:< 1.5 mV (RMS)/ < 20 mV/ < 500 µA

Maximum acquisition rate: 10 sample/s

Memory depth: external USB drive

Remote control interfaces standard USB-TMC, USB-CDC (virtual COM), LAN

Mains nominal voltage: 100 V/115 V/230 V (±10%)

Display: 3.5"/QVGA

Dimensions (W × H × D):222 mm × 97 mm × 448 mm

Weight: 6.9 kg

Accessories supplie: Set of power cables, terminal blocks, quick start guide

Datasheet
