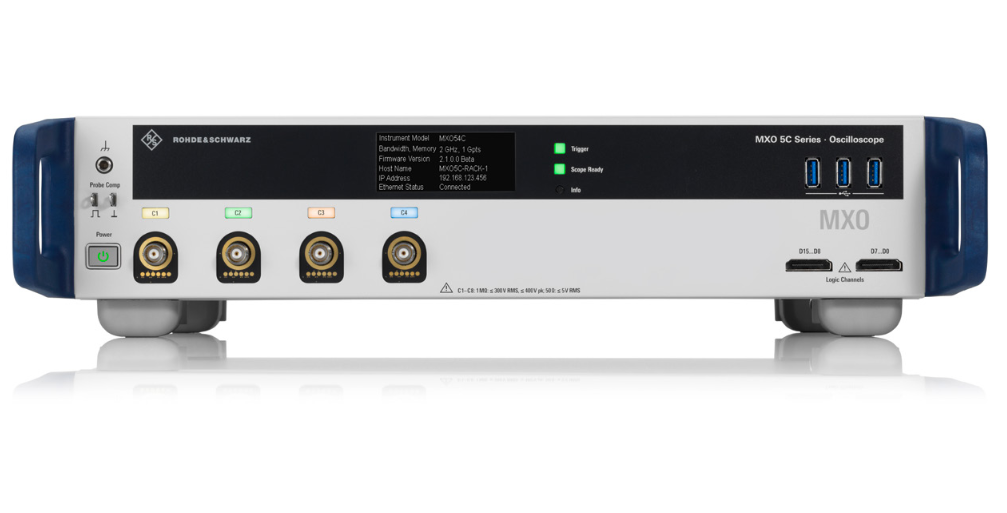

Rohde & Schwarz MXO 54C Oscilloscope (4CH; 350 MHz)

Key specifications

Channels: 4

Bandwidth: 350 MHz, 500 MHz, 1 GHz, 2 GHz

Maximum sample rate: 5 Gsample/s (on 4 channels)

Record length: 500 Mpoints; 1 Gpoints (optional)

Vertical resolution: 12-bit ADC (up to 18 bit with HD mode)

Acquisition rate: > 4.5 million waveforms/s (on 4 channels); 17000 FFT/s (on 4 channels)

Hardware options: MSO (16 logic channels); 100 MHz generator (dual Arb)

Operating system: Linux

Web browser: intuitive user interface with MXO 5 front panel

General data

Rackmount height: 2 HU

Display: external via DisplayPort or HDMI™

Touch display: on external display that supports touch via USB

Front panel: virtual with web browser, e-ink display for status and connectivity info

Passive probes: optional
