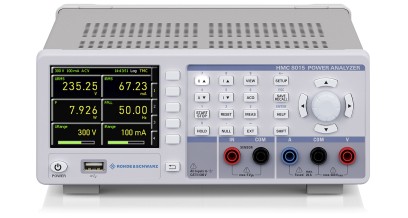

Rohde&Schwarz HMC8015 Power Analyzer (DC to 100 kHz,0.1 %)

Manufacturer: Rohde & Schwarz

Model: HMC8015

Warranty: 12 months

Analog bandwidth: DC to 100 kHz

Frequency accuracy: 0.1 % of reading

A/D converter resolution: voltage and current16 bit

Basic accuracy: 0.05 % of reading

Display resolution: 5 digits, 10 updates/s

Sampling frequency: 500 kHz

Input impedance: 2 MΩ

PLL synchronization sources: U, I, external

Filters

Analog signal filter: 1 kHz

Digital filter: adaptive filter

Frequency filter: 500 Hz

Additional inputs/outputs: BNC, rear panel

Analog input: ±10 V (U peak)

Analog input accuracy: 0.5 % of reading

Analog output: ±5 V (U peak)

Digital input

Limits (PASS/FAIL): bandwidth100 kHz; PWM1 kHz; state≤ 10 Hz

Signal threshold

logical zero: 0 V to 2 V

logical one: 3 V to 24 V

Digital output: 5 V, TTL

Display: 8.9 cm (3.5") TFT (color); resolution320 × 240 pixel (QVGA)

Network connection: AC100 V to 115 V/230 V at 50 Hz to 60 Hz

Power consumption: max. 35 W, typ. 15 W

Operating temperature range: +5 °C to +40 °C

Storage temperature range: –25 °C to +60 °C

Standards: CAN/CSA-C22.2 NO. 61010-1, UL 61010-1,

DIN EN 61010-1, DIN EN 61326-1, DIN EN 55011

Common mode voltage: CAT II, 600 V (U RMS)

Dimensions: 222 mm × 88 mm × 280 mm

Weigh:approx. 3.25 kg (7.16 lb)

Warm-up time: 60 min
