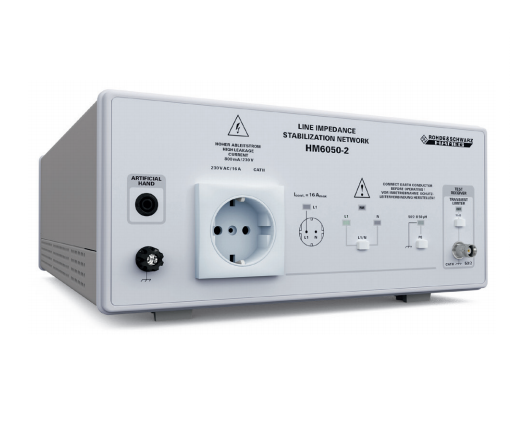

Rohde&Schwarz HM6050-2D Line Impedance Stabilization Network (10kHz to 30 MHz, E Version)

Manufacturer: Rohde & Schwarz

Model: HM6050-2D

Warranty: 12 months

Frequency Range: 10kHz to 30 MHz

Impedance Characteristics: Z = 50Ω/(50µH + 5Ω); Error <20% under terms of VDE 876T1

Max. Current: 16A

Line Voltage/Frequency: 230V/50…60Hz, CAT II

Artificial Hand: 220pF + 511Ω

PE (selectable): 50µH / 50Ω

Transient Limiter

Frequency Range: 150kHz to 30MHz

Transmission Loss: 10dB (+1.5/-0.5dB)

Connectors

Measurement Output: 50Ω BNC

Power Supply Socket for DUT: Schuko plug socket for: HM6050-2D (DE Version)

Artificial Hand: 4mm banana socket

Line Cord: Fixed

Miscellaneous

Operating Temperature: 10°C to 40°C

Power Supply: HM6050-2D (DE Version): 230V ±10%, 50…60Hz

Safety Class: Safety class I (IEC1010-1/VDE 0411)

Dimensions (W x H x D): 285 x 125 x 380mm

Weight: Approx. 6kg

Accessories supplied:

Line cord, Operating manual
