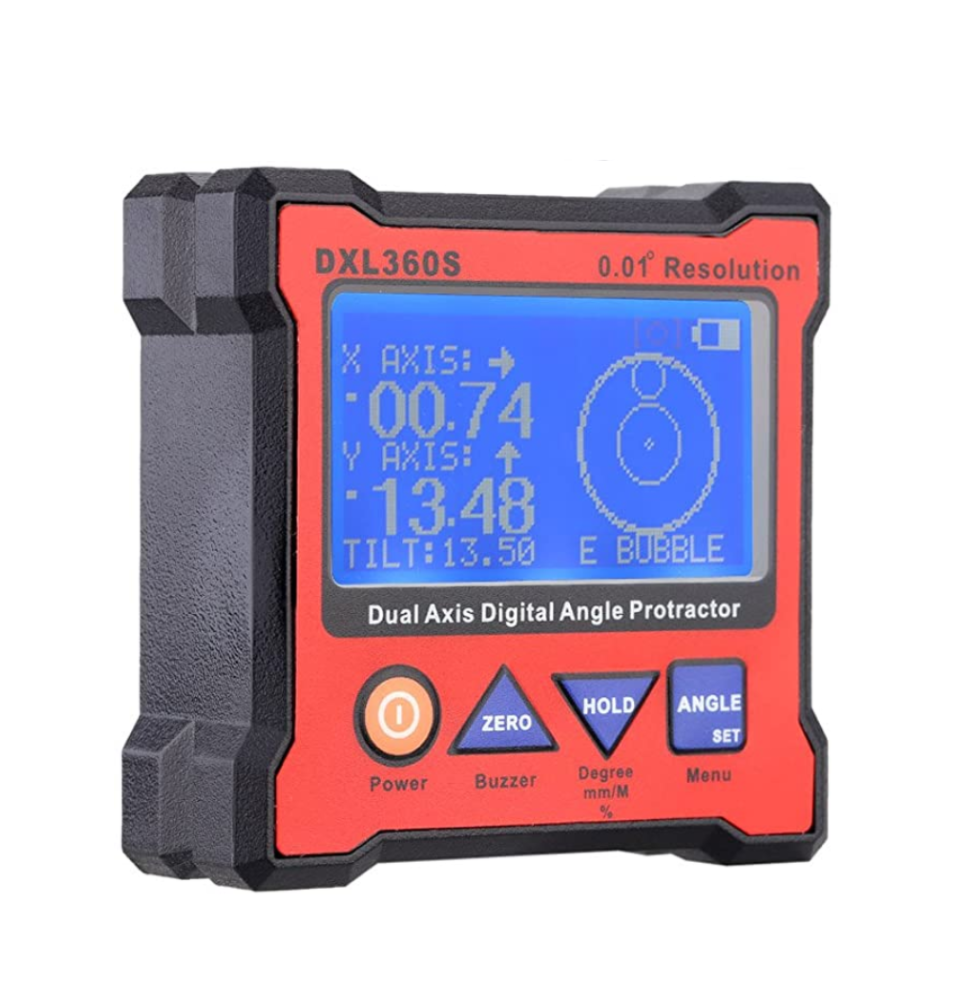

Roeckle DXL360S V3.2 Dual Axis Digital Protractor with Magnetic base (360°/± 40°, 0.01°)

- Color red

- Resolution: 0,01° (ca. 0.175 mm/m)

- Accuracy:

0 to 20°: ± 0,05°+1% (± 0.872 mm/m +1%)

20 to 70°: ± 0,1° (± 1,745 mm/m)

70 to 90°: ± 0,05°+1% (± 0.872 mm/m +1%)

- Measuring range:

Single axis: 360°, 2-axis: ± 40°

- Response time: <0.4 seconds

- Zero angle offset drift per °C: 0.0058 ° (typical)

- Audio sound: 60 dB at a distance of 30 cm with adjustable angle

- Operating temperature: 0 to 50 °C

- Storage temperature: -10 to 60 °C

- User interface: mono color LCD with backlight

- Power supply: rechargeable Li-Polymer 3.7 V battery

- Charging port: 5V 500 mA Mini Type B USB port

- Power consumption: standby: 10 µA, operation: 20 mA

- Battery life: standby 2000 hours, operation 40 hours

- Magnets: bottom side and back

- Dimensions (L x W x H): 66 x 64 x 29 mm

- Weight: 118.3 g

Package list:

1 x digital protractor DXL360

1 x power supply

1 x USB Type B connection cable

1 x user manual
