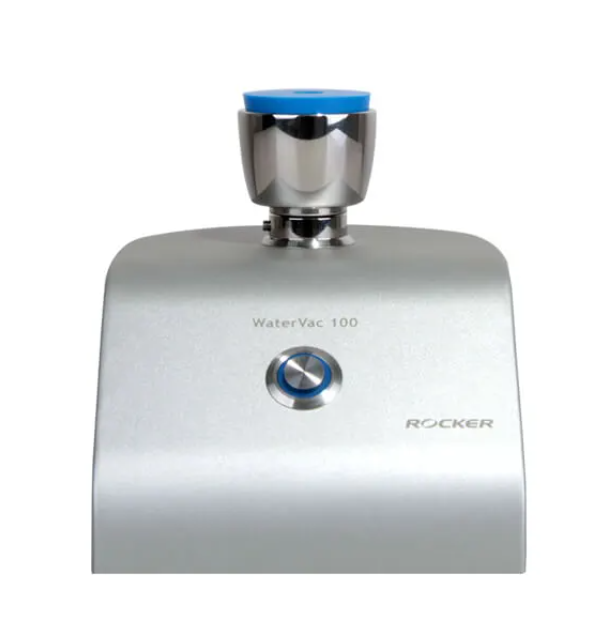

Rocker WaterVac 100-MS Vacuum Filtration System (0.5 L/min, 313 mbar abs.)

Max. vacuum: 313 mbar abs.

Max. liquid flow rate: 0.5 L/min

Hose barb: ID6

Noise level: 55 dB

Net weight: 1.2 Kg

Dimension (LxWxH): 17 x 12 x 10 cm

Material contact with filtrate: SS316, FKM, Silicone, PP, PA66

Power input: DC12V, 1.0A

Max. power: 12W

Motor: Brushless DC Motor (BLDC)

Number of branch: 1

Adaptor: No.8 Stopper

Filter holder (Optional): MF 3 / MF 5, Magnetic filter holder, 300 mL / 500 mL

Materials

Housing material – SS304

Adaptor – SS316

Valve plate – EPDM (Ethylene Propylene Diene Monomer)

Diaphragm – EPDM (Ethylene Propylene Diene Monomer)

Fluid Path Inlet – SS316

Fluid outlet port – SS316

Fluid path hose – Silicone tube​

O-ring – FKM

Draining hose – silicone
