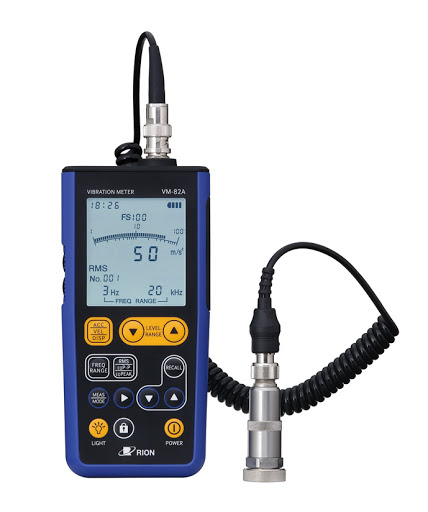

RION VM-82A Rion VM-82A General-purpose Vibration Meter

Measurement range (using PV-57I)
+ ACC (Acceleration): 0.02 to 200 m/s2, EQ PEAK, 1 Hz to 5 kHz
+ VEL (Velocity):
0.3 to 1 000 mm/s, RMS, 3 Hz to 1 kHz
0.1 to 1 000 mm/s, RMS, 10 Hz to 1 kHz
+ DISP (Displacement)
0.02 to 100 mm, EQ PEAK, 3 Hz to 500 Hz
0.001 to 100 mm, EQ PEAK, 10 Hz to 500 Hz
Frequency range
+ ACC (Acceleration): 3 Hz to 1 kHz, 3 Hz to 5 kHz, 1 Hz to 100 Hz, 3 Hz to 20 kHz
+ VEL (Velocity): 10 Hz to 1 kHz, 3 Hz to 1 kHz
+ DISP (Displacement): 10 Hz to 500 Hz, 3 Hz to 500 Hz
Alkaline batteries: Approx. 24 hours (room temperature, backlight OFF, outputs and communication function OFF)
Dimensions / Weight: Approx. 171.5 (H) x 74 (W) x 25.5 (D) mm / Approx. 270 g (including batteries)
Supplied accessories: Piezoelectric Accelerometer PV-57I x 1, M6 screw VP-53A x 2, IEC LR6 (size AA) alkaline battery x 4, Curled accelerometer cable VP-51 Kl x 1, Magnet attachment VP-53S x 1

Datasheet
