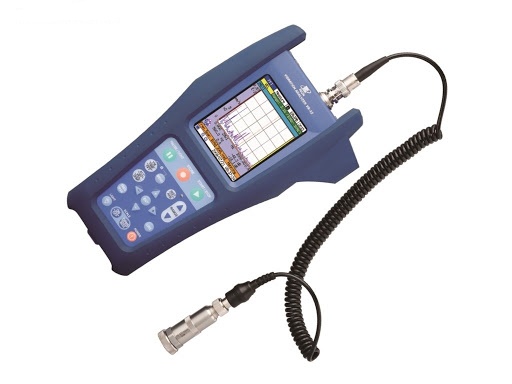

RION VA-12 Rion VA-12 Vibration Analyzer

- DC12 V (1 1 to 15 V): AC adapter NC-99. eight EC R6 (size AA) batteries (23t). normal operation, backlight off)
- Battery life: Approx. 12 hours
- Current consumptiona: 145 mA (normal operation, backlight off)
- Ambient temperature and humidity conditions for use: -10 to +50 C. 90 % RH or less (no condensation)
- Dimensions. Weight : 214 (H) x 105 (W) x 36 (D) mm; Mass Approx. 850 g (incl. batteries, with protective cover. PV-57I connected)
- Supplied accessories: Piezoelectric Accelerometer PV-57I. Curled cable. Magnet attachment IEC R6 (size AA) battery x 8. SD card. Protective cover. Shoulder belt
