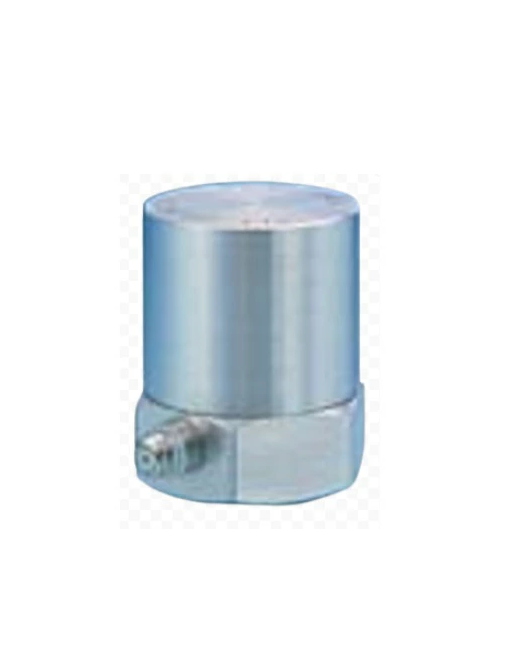

RION PV-87 Accelerometer (400m/s²)

Outline/purpose: High sensitivity accelerometer for measurement of large structures

Principle: Shear

Mass (g): 115

Charge sensitivity (pC/(m/s²)): 40

Voltage sensitivity (mV/(m/s²)): —

Vibration frequency range (±10%) Hz: 1 to 3,000

Mounting resonance frequency (kHz): 9

Transverse sensitivity: 5% or less

Standard mounting method: VP-53A M6 screws

Maximum measurable acceleration (m/s² peak): 400

Base distortion sensitivity (m/s²/strain): 0.008

Thermal transient response (m/s²/°C): 0.05

Usable temperature range for use (°C): -50 to +160

Capacitance (pF): 780

Case material: Stainless steel
