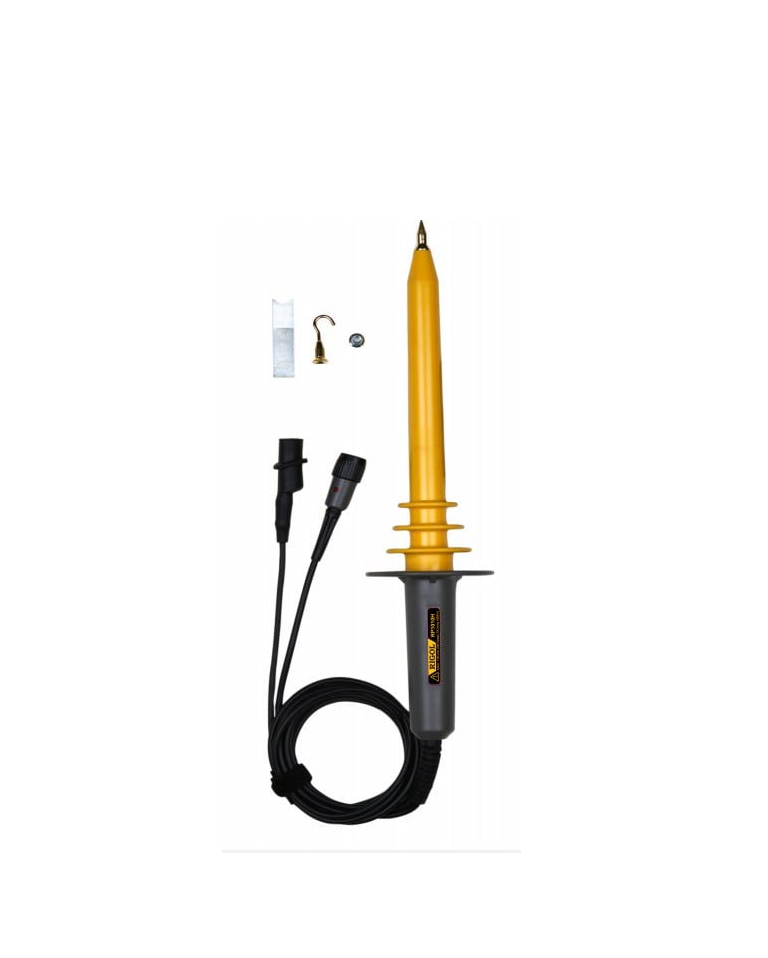

RIGOL RP1010H Oscilloscope Passive High Voltage Probe (40 MHz)

Max. Working Voltage

DC: 0 ~ 10 KV DC

AC: pulse ≤ 20 KV peak to peak

AC: sine wave ≤ 7 KVrms

Signal/Noise

DC ≥ 60 dB (1 KHz), ≥ 50 dB (1 MHz)

Bandwidth DC ~40 MHz (-3 dB)

Division Ratio 1:1000

Rise Time ≤ 8.8 ns

Input Impedance 100 MΩ ± 5%

Input Capacitance 3.0 pF ± 0.5 pF

Compensation Range 5 pF ~ 50 pF

Cable Length 2.0 meter (± 0.2 M)

Temperature Coefficient ≤ 200 PPM /℃

Accuracy

DC ± 3% (DC to 10 KV)

AC ± 3% (1 KHz/1 KV ), -3dB 40 MHz

Safety App. CE

Operating Temperature 0 ~ 50℃

Storage Temperature -20 ~ +70℃

Weight / Dimension 250 g / Φ75 x 340 mm L
