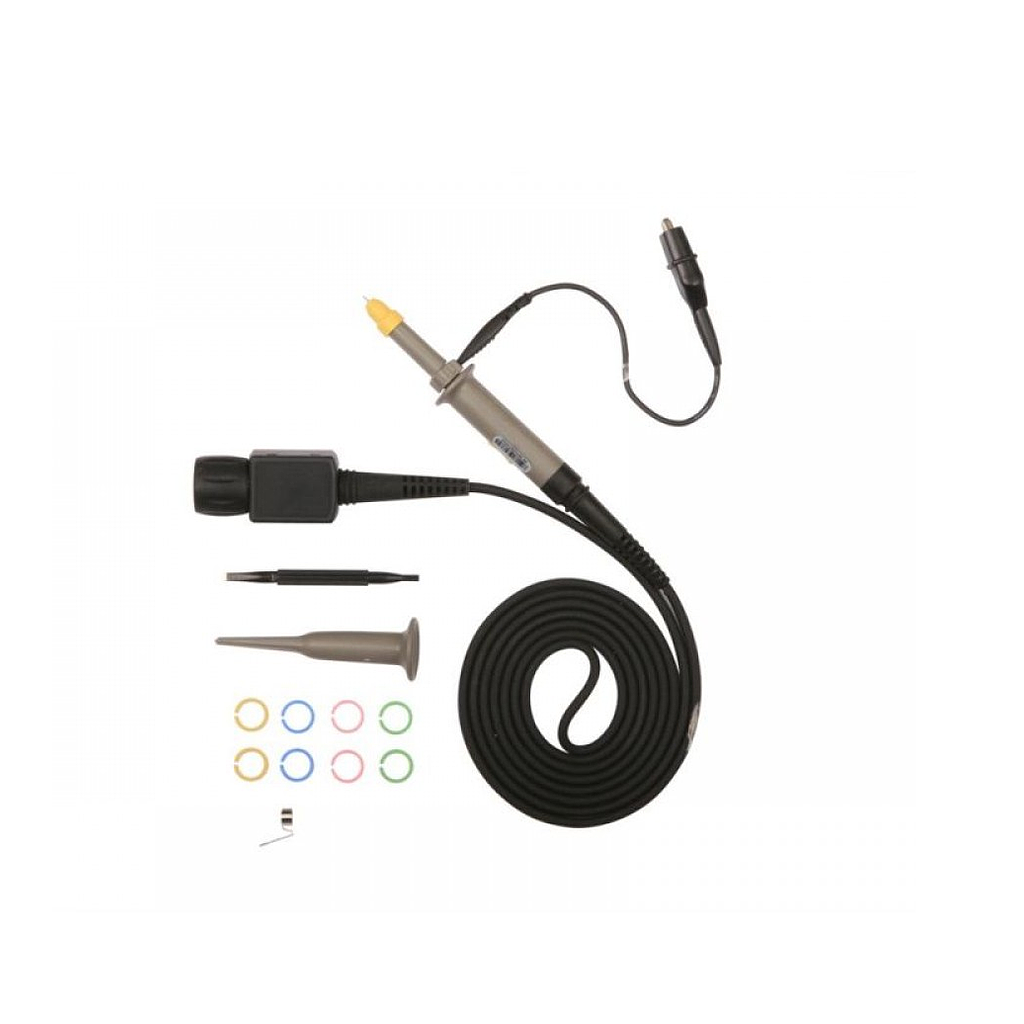

RIGOL PVP2150 Passive Oscilloscope Probe (150MHz)

Bandwidth: 1X: DC to 35 MHz 10X: DC to 150 MHz

Rise Time: 1X: 10 ns 10X: 2.3 ns

Attenuation Ratio: 10:1 or 1:1 Switchable

Input Resistance:

1X: 1 MΩ ± 1% @ DC

10X: 10 MΩ ± 1% @ DC

Input Capacitance:

1X: 50 pF ± 20 pF

10X: 10 pF ± 5 pF

Max. Rated Input Voltage:

1X: 150 VRMS CAT II

10X: 300 VRMS CAT II

Compensation Range: 10 pF to 25 pF

Cable Length: 120 ± 2 cm

Probe Tip Diameter: 4.6 mm

Temperature: Operating: 0℃ to +50℃

Nonoperating: -20℃ to +70℃

Altitude: Operating: 2,000 m

Nonoperating: 15,000 m

Max. Relative Humidity: 80% relative humidity for temperature up to +31℃, decreasing linearly to 40% relative humidity at +50℃

Weight (probe only): About 40 g
