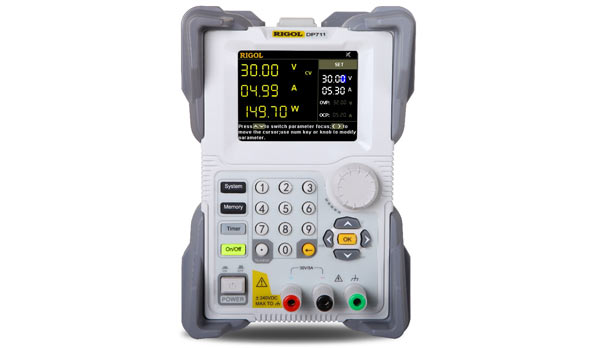

RIGOL DP711 Programmable Linear DC Power Supply (33V, 5.5A)

Manufacturer: Rigol

Model: DP711

Warranty: 12 months

- DC Output (0°C to 40°C)

Voltage/Current Rating: 0 V to 30 V/0 A to 5 A

OVP/OCP: 0.01 V to 33 V/0.01 A to 5.5 A

- Load Regulation, ±(% of Output + Offset)

Voltage: <0.01% + 2 mV

Current: <0.01% + 2 mA

- Line Regulation, ±(% of Output + Offset)

Voltage: <0.01% + 2 mV

Current: <0.01% + 2 mA

- Ripple and Noise (20 Hz to 20 MHz)

Normal Mode Voltage: <500 μVrms/3 mVpp

Normal Mode Current: <2 mArms

- Annual Accuracy (25°C ± 5°C), ±(% of Output + Offset)

Programming: Voltage 0.05% + 20 mV; Current 0.2% + 10 mA

Readback: Voltage 0.05% + 20 mV; Current 0.2% + 20 mA

- Transient Response Time: Less than 50 μs

- Command Processing Time: <100 ms

- OVP/OCP

Accuracy, ±(% of Output + Offset): 0.5% + 0.5 V/0.5% + 0.5 A

OVP Activation Time: <10 ms (OVP>1 V)

- Voltage Programming Speed (within 1% of the total variation range)

Up: Full Load: 150 ms; No Load: 100 ms

Down: Full Load: 30 ms; No Load: 450 ms
