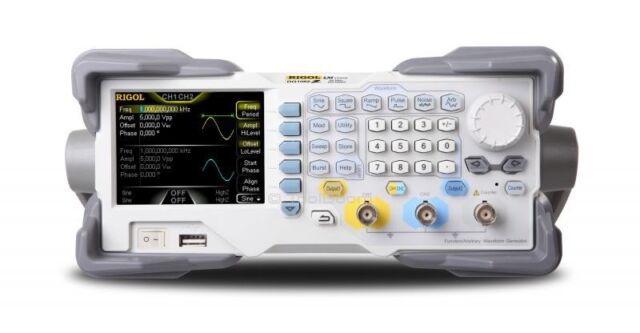

Rigol DG1062Z Function/Arbitrary Waveform Generator (60MHz, 200MSa/s, 2CH)

Max.Output Frequency 60Mhz

Innovative SiFi (Signal Fidelity): generate arb waveform point-by-point,restore signal distortionless, precisely adjustable sample rate and low jitter (200ps)

Arbitrary waveform memory: 8Mpts (standard), 16Mpts (optional)

Standard 2 full functional channels can be used as two independent generators

±1ppm frequency stability, -125dBc/Hz phase noise

Built-in 8 orders harmonics generator

Built-in 7 digits/s full function frequency counter with 200MHz bandwidth

Up to 160 built-in waveforms

200MSa/s sample rate, 14bits vertical resolution

Convenient arbitrary waveform editing interface

Versatile modulation types: AM, FM, PM, ASK, FSK, PSK and PWM

Standard waveform summing function

Standard channel track function

Standard interfaces: USB Host& Device, LAN(LXI Core Device 2011)

3.5 inches TFT color display

Manufacturer: Rigol

Datasheet

Manual

Quick start guide
