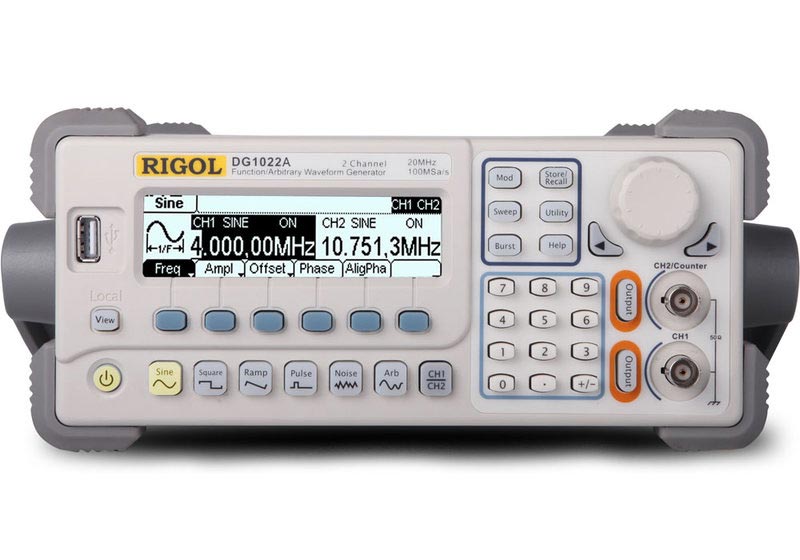

Waveform Generators Rigol DG1022A (25MHz)

Channels :2
Signal Output: Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise
Vertical Resolution : 14 bit (Channel 1)
10 bit (Channel 2)
Amplitudes :
Channel 1:
≤ 20 MHz: 2 mVpp ~ 10 Vpp (50 Ω)
> 20 MHz: 2 mVpp ~ 5 Vpp (50 Ω)
4 mVpp ~ 20 Vpp (high impedance)
Channel 2:
2 mVpp ~ 3 Vpp (50 Ω)
4 mVpp ~ 6 Vpp (high impedance)
DC Offset :
Channel 1:
±5 V (50 Ω)
±10 V (high impedance)
Channel 2:
±5 V (50 Ω)
±10 V (high impedance)
Sample Rate : 100 MSa/s
Frequency Range Sine : 1 µHz - 25 MHz
Frequency Range Rectangle : 1 µHz - 5 MHz
Frequency Range Pulse : 500 µHz - 5 MHz
Frequency Range Ramp : 1 µHz - 500 KHz
Frequency Range Arbitrary : 1 µHz - 5 MHz
Frequency Range Noise : 5 MHz (-3db)
Resolution : 1 µHz
Display : Monochrome LCD
Resolution : 256 × 64 Pixel
Interfaces- USB-Host &- USB for a PC connection
Dimensions232 mm × 288 mm × 108 mm
Weight2.7 kg (5.95 lbs)
Supported operation systemsWindows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)
Manufacture : Rigol - Trung Quốc
