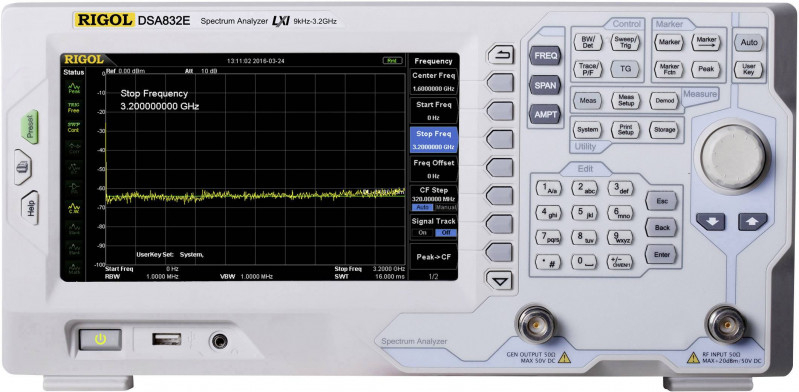

Rigol DSA832E Spectrum Analyzer (3.2Ghz)

Frequency
Frequency Range 9 kHz to 3.2 GHz
Frequency Resolution 1 Hz
SSB Phase Noise 20° to 30°, fc=1GHz
Carrier Offset 10kHz <-90dBc/Hz
Bandwidths Resolution Bandwidth (-3dB)
10 Hz to 1 MHz, in 1-3-10 sequence
Displayed Average Noise Level(DANL)
0 dB RF Attenuation, RBW=VBW=10Hz, Sample Detector, Trace Average ≥ 50, Tracking generator OFF, 20° to 30° ,input terminated 50Ω, PA On <-148dbm typ="" -130dbm="" typ="" with="" pa="" off="" br="">
Size 8 inch Colors 64k
USB storage device (not supplied)
Power Supply Input voltage range, AC 100 V to 240 V (nom.)
AC supply frequency 45 Hz to 440 Hz
Dimensions (W × H × D) 361.6 mm × 178.8 mm × 128 mm
(14.2 in × 7.0 in × 5.0 in) Weight
Standard 4.55 kg (10.0 lb)
With tracking generator 5.15 kg (11.4 lb)
